ndn::DerNode Class Reference

DerNode implements the DER node types used in encoding/decoding DER-formatted data. More...

#include <der-node.hpp>

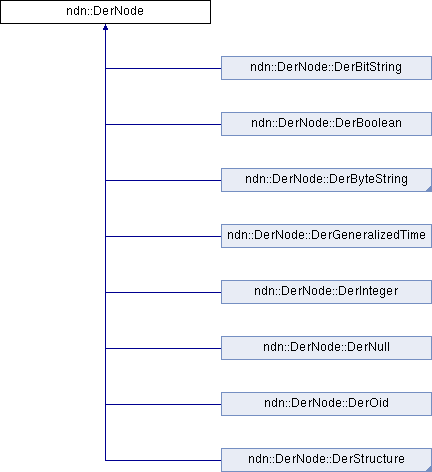

Inheritance diagram for ndn::DerNode:

Classes
class	DerBitString
	A DerBitString extends DerNode to handle a bit string. More...
class	DerBoolean
	DerBoolean extends DerNode to encode a boolean value. More...
class	DerByteString
	A DerByteString extends DerNode to handle byte strings. More...
class	DerGeneralizedTime
	A DerGeneralizedTime extends DerNode to represent a date and time, with millisecond accuracy. More...
class	DerInteger
	DerInteger extends DerNode to encode an integer value. More...
class	DerNull
	A DerNull extends DerNode to encode a null value. More...
class	DerOctetString
	DerOctetString extends DerByteString to encode a string of bytes. More...
class	DerOid
	A DerOid extends DerNode to represent an object identifier. More...
class	DerPrintableString
	A DerPrintableString extends DerByteString to handle a a printable string. More...
class	DerSequence
class	DerStructure
	A DerStructure extends DerNode to hold other DerNodes. More...

Public Member Functions
virtual size_t	getSize ()
virtual Blob	encode ()
	Get the raw data encoding for this node. More...
virtual Blob	toVal ()
	Convert the encoded data to a standard representation. More...
virtual const std::vector< ptr_lib::shared_ptr< DerNode > > &	getChildren ()
	If this object is a DerSequence, get the children of this node. More...

Static Public Member Functions
static ptr_lib::shared_ptr< DerNode >	parse (const uint8_t *inputBuf, size_t startIdx=0)
	Parse the data from the input buffer recursively and return the root as an object of a subclass of DerNode. More...
static DerNode::DerSequence &	getSequence (const std::vector< ptr_lib::shared_ptr< DerNode > > &children, size_t index)
	Check that index is in bounds for the children list, cast children[index] to DerSequence and return it. More...

Protected Member Functions
	DerNode (DerNodeType nodeType)
	Create a generic DER node with the given nodeType. More...
void	encodeHeader (size_t size)
	Encode the given size and update the header. More...
size_t	decodeHeader (const uint8_t *inputBuf, size_t startIdx)
	Extract the header from an input buffer and return the size. More...
virtual void	decode (const uint8_t *inputBuf, size_t startIdx)
	Decode and store the data from an input buffer. More...
void	payloadAppend (const uint8_t *value, size_t valueLength)
	Call payload_.copy to copy value into payload_ at payloadPosition_. More...

Protected Attributes
DerStructure *	parent_
DerNodeType	nodeType_
std::vector< uint8_t >	header_
DynamicUInt8Vector	payload_
size_t	payloadPosition_

Detailed Description

DerNode implements the DER node types used in encoding/decoding DER-formatted data.

Constructor & Destructor Documentation

ndn::DerNode::DerNode ( DerNodeType  nodeType )

inlineprotected

Create a generic DER node with the given nodeType.

This is a private constructor used by one of the public DerNode subclasses defined below.

Parameters

nodeType

The DER node type.

Member Function Documentation

void ndn::DerNode::decode ( const uint8_t *  inputBuf, size_t  startIdx  )

protectedvirtual

Decode and store the data from an input buffer.

Parameters

inputBuf	The input buffer to read from. This reads from startIdx.
startIdx	The offset into the buffer.

Reimplemented in ndn::DerNode::DerStructure.

size_t ndn::DerNode::decodeHeader ( const uint8_t *  inputBuf, size_t  startIdx  )

protected

Extract the header from an input buffer and return the size.

Parameters

inputBuf	The input buffer to read from.
startIdx	The offset into the buffer.

Returns

The parsed size in the header.

Blob ndn::DerNode::encode ( )

virtual

Get the raw data encoding for this node.

Returns

The raw data encoding.

Reimplemented in ndn::DerNode::DerStructure.

void ndn::DerNode::encodeHeader ( size_t  size )

protected

Encode the given size and update the header.

Parameters

size	The size to encode in the header.

const std::vector< ptr_lib::shared_ptr< DerNode > > & ndn::DerNode::getChildren ( )

virtual

If this object is a DerSequence, get the children of this node.

Otherwise, throw an exception. (DerSequence overrides to implement this method.)

Returns

The children as an array of shared_ptr<DerNode>.

Exceptions

DerDecodingException

if this object is not a DerSequence.

Reimplemented in ndn::DerNode::DerStructure.

DerNode::DerSequence & ndn::DerNode::getSequence ( const std::vector< ptr_lib::shared_ptr< DerNode > > &  children, size_t  index  )

static

Check that index is in bounds for the children list, cast children[index] to DerSequence and return it.

Parameters

children	The list of DerNode, usually returned by another call to getChildren.
index	The index of the children.

Returns

children[index] cast to DerSequence.

Exceptions

DerDecodingException

if index is out of bounds or if children[index] is not a DerSequence.

ptr_lib::shared_ptr< DerNode > ndn::DerNode::parse ( const uint8_t *  inputBuf, size_t  startIdx = 0  )

static

Parse the data from the input buffer recursively and return the root as an object of a subclass of DerNode.

Parameters

inputBuf	The input buffer to read from. This reads from startIdx.
startIdx	(optional) The offset into the buffer. If omitted, use 0.

Returns

A shared_ptr for an object of a subclass of DerNode.

void ndn::DerNode::payloadAppend ( const uint8_t *  value, size_t  valueLength  )

inlineprotected

Call payload_.copy to copy value into payload_ at payloadPosition_.

Update payloadPosition_.

Parameters

value	The buffer to copy from.
valueLength	The length of the value buffer.

Blob ndn::DerNode::toVal ( )

virtual

Convert the encoded data to a standard representation.

Overridden by some subclasses (e.g. DerBoolean).

Returns

The encoded data as a Blob.

Reimplemented in ndn::DerNode::DerOid, and ndn::DerNode::DerByteString.

---

The documentation for this class was generated from the following files:

• src/encoding/der/der-node.hpp
• src/encoding/der/der-node.cpp
