A Tlv0_1_1WireFormat extends WireFormat to override its virtual methods to implement encoding and decoding using NDN-TLV version 0.1.1. More...

#include <tlv-0_1_1-wire-format.hpp>

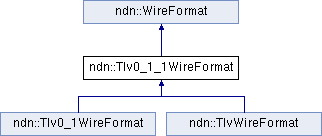

Inheritance diagram for ndn::Tlv0_1_1WireFormat:

Public Member Functions
virtual Blob	encodeName (const Name &name)
	Encode name in NDN-TLV and return the encoding. More...

virtual void	decodeName (Name &name, const uint8_t *input, size_t inputLength)
	Decode input as a name in NDN-TLV and set the fields of the Name object. More...

virtual Blob	encodeInterest (const Interest &interest, size_t signedPortionBeginOffset, size_t signedPortionEndOffset)
	Encode interest in NDN-TLV and return the encoding. More...

virtual void	decodeInterest (Interest &interest, const uint8_t input, size_t inputLength, size_t signedPortionBeginOffset, size_t *signedPortionEndOffset)
	Decode input as an interest in NDN-TLV and set the fields of the interest object. More...

virtual Blob	encodeData (const Data &data, size_t signedPortionBeginOffset, size_t signedPortionEndOffset)
	Encode data with NDN-TLV and return the encoding. More...

virtual void	decodeData (Data &data, const uint8_t input, size_t inputLength, size_t signedPortionBeginOffset, size_t *signedPortionEndOffset)
	Decode input as a data packet in NDN-TLV and set the fields in the data object. More...

virtual Blob	encodeControlParameters (const ControlParameters &controlParameters)
	Encode controlParameters as NDN-TLV and return the encoding. More...

virtual void	decodeControlParameters (ControlParameters &controlParameters, const uint8_t *input, size_t inputLength)
	Decode input as a command parameters and set the fields of the controlParameters object. More...

virtual Blob	encodeSignatureInfo (const Signature &signature)
	Encode signature as an NDN-TLV SignatureInfo and return the encoding. More...

virtual ptr_lib::shared_ptr< Signature >	decodeSignatureInfoAndValue (const uint8_t signatureInfo, size_t signatureInfoLength, const uint8_t signatureValue, size_t signatureValueLength)
	Decode signatureInfo as a signature info and signatureValue as the related SignatureValue, and return a new object which is a subclass of Signature. More...

virtual Blob	encodeSignatureValue (const Signature &signature)
	Encode the signatureValue in the Signature object as an NDN-TLV SignatureValue (the signature bits) and return the encoding. More...

Public Member Functions inherited from ndn::WireFormat
Blob	encodeInterest (const Interest &interest)
	Encode interest and return the encoding. More...

void	decodeInterest (Interest &interest, const uint8_t *input, size_t inputLength)

Blob	encodeData (const Data &data)
	Encode data and return the encoding. More...

void	decodeData (Data &data, const uint8_t *input, size_t inputLength)

virtual Blob	encodeForwardingEntry (const ForwardingEntry &forwardingEntry)
	Encode forwardingEntry and return the encoding. More...

virtual void	decodeForwardingEntry (ForwardingEntry &forwardingEntry, const uint8_t *input, size_t inputLength)
	Decode input as a forwarding entry and set the fields of the forwardingEntry object. More...

virtual ptr_lib::shared_ptr< Signature >	decodeSignatureInfoAndValue (const Blob &signatureInfo, const Blob &signatureValue)
	Decode signatureInfo as a signature info and signatureValue as the related SignatureValue, and return a new object which is a subclass of Signature. More...

Static Public Member Functions
static Tlv0_1_1WireFormat *	get ()
	Get a singleton instance of a Tlv0_1_1WireFormat. More...

Static Public Member Functions inherited from ndn::WireFormat
static void	setDefaultWireFormat (WireFormat *wireFormat)
	Set the static default WireFormat used by default encoding and decoding methods. More...

static WireFormat *	getDefaultWireFormat ()
	Return the default WireFormat used by default encoding and decoding methods which was set with setDefaultWireFormat. More...

Additional Inherited Members
Static Public Attributes inherited from ndn::WireFormat
static bool	ENABLE_NDNX = false
	NDNx support and binary XML (ccnb or ndnb) encoding is deprecated and code with throw an exception. More...

Detailed Description

A Tlv0_1_1WireFormat extends WireFormat to override its virtual methods to implement encoding and decoding using NDN-TLV version 0.1.1.

To always use the preferred version NDN-TLV, you should use the class TlvWireFormat.

Member Function Documentation

void ndn::Tlv0_1_1WireFormat::decodeControlParameters	(	ControlParameters &	controlParameters,
		const uint8_t *	input,
		size_t	inputLength
	)

virtual

Decode input as a command parameters and set the fields of the controlParameters object.

Parameters

controlParameters	The ControlParameters object whose fields are updated.
input	A pointer to the input buffer to decode.
inputLength	The number of bytes in input.

Reimplemented from ndn::WireFormat.

void ndn::Tlv0_1_1WireFormat::decodeData	(	Data &	data,
		const uint8_t *	input,
		size_t	inputLength,
		size_t *	signedPortionBeginOffset,
		size_t *	signedPortionEndOffset
	)

virtual

Decode input as a data packet in NDN-TLV and set the fields in the data object.

Parameters

data	The Data object whose fields are updated.
input	A pointer to the input buffer to decode.
inputLength	The number of bytes in input.
signedPortionBeginOffset	Return the offset in the input buffer of the beginning of the signed portion. If you are not decoding in order to verify, you can call decodeData(Data& data, const uint8_t *input, size_t inputLength) to ignore this returned value.
signedPortionEndOffset	Return the offset in the input buffer of the end of the signed portion. If you are not decoding in order to verify, you can call decodeData(Data& data, const uint8_t *input, size_t inputLength) to ignore this returned value.

Reimplemented from ndn::WireFormat.

void ndn::Tlv0_1_1WireFormat::decodeInterest	(	Interest &	interest,
		const uint8_t *	input,
		size_t	inputLength,
		size_t *	signedPortionBeginOffset,
		size_t *	signedPortionEndOffset
	)

virtual

Decode input as an interest in NDN-TLV and set the fields of the interest object.

Parameters

interest	The Interest object whose fields are updated.
input	A pointer to the input buffer to decode.
inputLength	The number of bytes in input.
signedPortionBeginOffset	Return the offset in the encoding of the beginning of the signed portion. The signed portion starts from the first name component and ends just before the final name component (which is assumed to be a signature for a signed interest). If you are not decoding in order to verify, you can call decodeInterest(Interest& interest, const uint8_t *input, size_t inputLength) to ignore this returned value.
signedPortionEndOffset	Return the offset in the encoding of the end of the signed portion. The signed portion starts from the first name component and ends just before the final name component (which is assumed to be a signature for a signed interest). If you are not decoding in order to verify, you can call decodeInterest(Interest& interest, const uint8_t *input, size_t inputLength) to ignore this returned value.

Reimplemented from ndn::WireFormat.

void ndn::Tlv0_1_1WireFormat::decodeName	(	Name &	name,
		const uint8_t *	input,
		size_t	inputLength
	)

virtual

Decode input as a name in NDN-TLV and set the fields of the Name object.

Parameters

name	The Name object whose fields are updated.
input	A pointer to the input buffer to decode.
inputLength	The number of bytes in input.

Reimplemented from ndn::WireFormat.

ptr_lib::shared_ptr< Signature > ndn::Tlv0_1_1WireFormat::decodeSignatureInfoAndValue	(	const uint8_t *	signatureInfo,
		size_t	signatureInfoLength,
		const uint8_t *	signatureValue,
		size_t	signatureValueLength
	)

virtual

Decode signatureInfo as a signature info and signatureValue as the related SignatureValue, and return a new object which is a subclass of Signature.

Parameters

signatureInfo	A pointer to the signature info input buffer to decode.
signatureInfoLength	The number of bytes in signatureInfo.
signatureValue	A pointer to the signature value input buffer to decode.
signatureValueLength	The number of bytes in signatureValue.

Returns: A new object which is a subclass of Signature.

Reimplemented from ndn::WireFormat.

Blob ndn::Tlv0_1_1WireFormat::encodeControlParameters ( const ControlParameters & controlParameters )

virtual

Encode controlParameters as NDN-TLV and return the encoding.

Parameters

controlParameters The ControlParameters object to encode.

Returns: A Blob containing the encoding.

Reimplemented from ndn::WireFormat.

Blob ndn::Tlv0_1_1WireFormat::encodeData	(	const Data &	data,
		size_t *	signedPortionBeginOffset,
		size_t *	signedPortionEndOffset
	)

virtual

Encode data with NDN-TLV and return the encoding.

Parameters

data	The Data object to encode.
signedPortionBeginOffset	Return the offset in the encoding of the beginning of the signed portion. If you are not encoding in order to sign, you can call encodeData(const Data& data) to ignore this returned value.
signedPortionEndOffset	Return the offset in the encoding of the end of the signed portion. If you are not encoding in order to sign, you can call encodeData(const Data& data) to ignore this returned value.

Returns: A Blob containing the encoding.

Reimplemented from ndn::WireFormat.

Blob ndn::Tlv0_1_1WireFormat::encodeInterest	(	const Interest &	interest,
		size_t *	signedPortionBeginOffset,
		size_t *	signedPortionEndOffset
	)

virtual

Encode interest in NDN-TLV and return the encoding.

Parameters

interest	The Interest object to encode.
signedPortionBeginOffset	Return the offset in the encoding of the beginning of the signed portion. The signed portion starts from the first name component and ends just before the final name component (which is assumed to be a signature for a signed interest).
signedPortionEndOffset	Return the offset in the encoding of the end of the signed portion. The signed portion starts from the first name component and ends just before the final name component (which is assumed to be a signature for a signed interest).

Returns: A Blob containing the encoding.

Reimplemented from ndn::WireFormat.

Blob ndn::Tlv0_1_1WireFormat::encodeName ( const Name & name )

virtual

Encode name in NDN-TLV and return the encoding.

Parameters

name	The Name object to encode.

Returns: A Blob containing the encoding.

Reimplemented from ndn::WireFormat.

Blob ndn::Tlv0_1_1WireFormat::encodeSignatureInfo ( const Signature & signature )

virtual

Encode signature as an NDN-TLV SignatureInfo and return the encoding.

Parameters

signature An object of a subclass of Signature to encode.

Returns: A Blob containing the encoding.

Reimplemented from ndn::WireFormat.

Blob ndn::Tlv0_1_1WireFormat::encodeSignatureValue ( const Signature & signature )

virtual

Encode the signatureValue in the Signature object as an NDN-TLV SignatureValue (the signature bits) and return the encoding.

Parameters

signature An object of a subclass of Signature with the signature value to encode.

Returns: A Blob containing the encoding.

Reimplemented from ndn::WireFormat.

static Tlv0_1_1WireFormat* ndn::Tlv0_1_1WireFormat::get ( )

inlinestatic

Get a singleton instance of a Tlv0_1_1WireFormat.

To always use the preferred version NDN-TLV, you should use TlvWireFormat::get().

Returns: A pointer to the singleton instance.

The documentation for this class was generated from the following files:

include/ndn-cpp/encoding/tlv-0_1_1-wire-format.hpp
src/encoding/tlv-0_1_1-wire-format.cpp
