DerNode implements the DER node types used in encoding/decoding DER-formatted data. More...

#include <der-node.hpp>

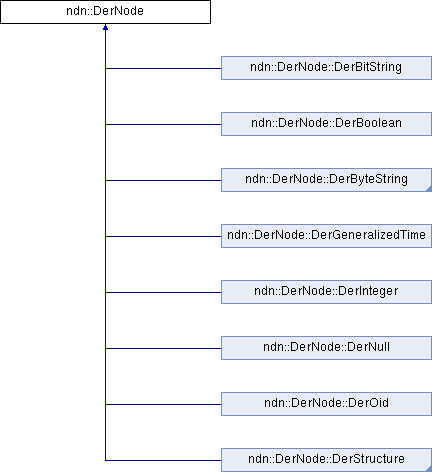

Inheritance diagram for ndn::DerNode:

Classes
class	DerBitString
	A DerBitString extends DerNode to handle a bit string. More...

class	DerBoolean
	DerBoolean extends DerNode to encode a boolean value. More...

class	DerByteString
	A DerByteString extends DerNode to handle byte strings. More...

class	DerGeneralizedTime
	A DerGeneralizedTime extends DerNode to represent a date and time, with millisecond accuracy. More...

class	DerInteger
	DerInteger extends DerNode to encode an integer value. More...

class	DerNull
	A DerNull extends DerNode to encode a null value. More...

class	DerOctetString
	DerOctetString extends DerByteString to encode a string of bytes. More...

class	DerOid
	A DerOid extends DerNode to represent an object identifier. More...

class	DerPrintableString
	A DerPrintableString extends DerByteString to handle a a printable string. More...

class	DerSequence

class	DerStructure
	A DerStructure extends DerNode to hold other DerNodes. More...

Public Member Functions
virtual size_t	getSize ()

virtual Blob	encode ()
	Get the raw data encoding for this node. More...

virtual Blob	toVal ()
	Convert the encoded data to a standard representation. More...

Blob	getPayload ()
	Get a copy of the payload bytes. More...

virtual const std::vector < ptr_lib::shared_ptr< DerNode > > &	getChildren ()
	If this object is a DerSequence, get the children of this node. More...

Static Public Member Functions
static ptr_lib::shared_ptr < DerNode >	parse (const uint8_t *inputBuf, size_t inputBufLength, size_t startIdx=0)
	Parse the data from the input buffer recursively and return the root as an object of a subclass of DerNode. More...

static ptr_lib::shared_ptr < DerNode >	parse (const Blob &input, size_t startIdx=0)

static ptr_lib::shared_ptr < DerNode >	parse (const std::vector< uint8_t > &input, size_t startIdx=0)

static DerNode::DerSequence &	getSequence (const std::vector< ptr_lib::shared_ptr< DerNode > > &children, size_t index)
	Check that index is in bounds for the children list, cast children[index] to DerSequence and return it. More...

Protected Member Functions
	DerNode (DerNodeType nodeType)
	Create a generic DER node with the given nodeType. More...

void	encodeHeader (size_t size)
	Encode the given size and update the header. More...

size_t	decodeHeader (const uint8_t *inputBuf, size_t inputBufLength, size_t startIdx)
	Extract the header from an input buffer and return the size. More...

virtual void	decode (const uint8_t *inputBuf, size_t inputBufLength, size_t startIdx)
	Decode and store the data from an input buffer. More...

void	payloadAppend (const uint8_t *value, size_t valueLength)
	Call payload_.copy to copy value into payload_ at payloadPosition_. More...

Protected Attributes
DerStructure *	parent_

DerNodeType	nodeType_

std::vector< uint8_t >	header_

DynamicUInt8Vector	payload_

size_t	payloadPosition_

Detailed Description

DerNode implements the DER node types used in encoding/decoding DER-formatted data.

Constructor & Destructor Documentation

ndn::DerNode::DerNode ( DerNodeType nodeType )

inlineprotected

Create a generic DER node with the given nodeType.

This is a private constructor used by one of the public DerNode subclasses defined below.

Parameters

nodeType The DER node type.

Member Function Documentation

void ndn::DerNode::decode	(	const uint8_t *	inputBuf,
		size_t	inputBufLength,
		size_t	startIdx
	)

protectedvirtual

Decode and store the data from an input buffer.

Parameters

inputBuf	The input buffer to read from. This reads from startIdx.
startIdx	The offset into the buffer.

Reimplemented in ndn::DerNode::DerStructure.

size_t ndn::DerNode::decodeHeader	(	const uint8_t *	inputBuf,
		size_t	inputBufLength,
		size_t	startIdx
	)

protected

Extract the header from an input buffer and return the size.

Parameters

inputBuf	The input buffer to read from.
startIdx	The offset into the buffer.

Returns: The parsed size in the header.

Blob ndn::DerNode::encode ( )

virtual

Get the raw data encoding for this node.

Returns: The raw data encoding.

Reimplemented in ndn::DerNode::DerStructure.

void ndn::DerNode::encodeHeader ( size_t size )

protected

Encode the given size and update the header.

Parameters

size	The size to encode in the header.

const std::vector< ptr_lib::shared_ptr< DerNode > > & ndn::DerNode::getChildren ( )

virtual

If this object is a DerSequence, get the children of this node.

Otherwise, throw an exception. (DerSequence overrides to implement this method.)

Returns: The children as an array of shared_ptr<DerNode>.

Exceptions

DerDecodingException if this object is not a DerSequence.

Reimplemented in ndn::DerNode::DerStructure.

Blob ndn::DerNode::getPayload ( )

inline

Get a copy of the payload bytes.

Returns: A copy of the payload.

DerNode::DerSequence & ndn::DerNode::getSequence	(	const std::vector< ptr_lib::shared_ptr< DerNode > > &	children,
		size_t	index
	)

static

Check that index is in bounds for the children list, cast children[index] to DerSequence and return it.

Parameters

children	The list of DerNode, usually returned by another call to getChildren.
index	The index of the children.

Returns: children[index] cast to DerSequence.

Exceptions

DerDecodingException if index is out of bounds or if children[index] is not a DerSequence.

ptr_lib::shared_ptr< DerNode > ndn::DerNode::parse	(	const uint8_t *	inputBuf,
		size_t	inputBufLength,
		size_t	startIdx = `0`
	)

static

Parse the data from the input buffer recursively and return the root as an object of a subclass of DerNode.

Parameters

inputBuf	The input buffer to read from. This reads from startIdx.
inputBufLength	The number of bytes in the input buffer.
startIdx	(optional) The offset into the buffer. If omitted, use 0.

Returns: A shared_ptr for an object of a subclass of DerNode.

void ndn::DerNode::payloadAppend	(	const uint8_t *	value,
		size_t	valueLength
	)

inlineprotected

Call payload_.copy to copy value into payload_ at payloadPosition_.

Update payloadPosition_.

Parameters

value	The buffer to copy from.
valueLength	The length of the value buffer.

Blob ndn::DerNode::toVal ( )

virtual

Convert the encoded data to a standard representation.

Overridden by some subclasses (e.g. DerBoolean).

Returns: The encoded data as a Blob.

Reimplemented in ndn::DerNode::DerOid, and ndn::DerNode::DerByteString.

The documentation for this class was generated from the following files:

src/encoding/der/der-node.hpp
src/encoding/der/der-node.cpp
